Dimensions of Ana Flow Cell





























The Ana Flow Cell is a resealable system that allows Zimmer and Peacock electrode systems to be put into a flow cell.  This system allows the easy placement and removal of any of our electrode configurations, allowing the scientist to pattern/activate the electrodes with an materials external to the cell, and then to seal the electrode system back into the flow cell.

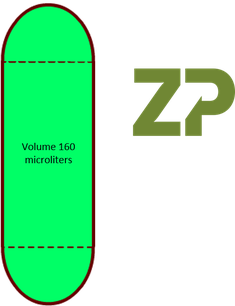

The internal volume of the flow cell is 160 micro litres.



Depending on the sensor you are using, the sensor might by reusable.  The Zimmer and Peacock's bare sensors are robust and so can be cleaned and used again and again. We also have potentiostats applicable for the flow cell.



Also note that if a very specific type of electrode arrangement, size or activation is needed, these can also be designed.

For those wishing to calculate the flow path and flow resistacnes here are some notes and dimensions:

  • 14mm long 1 mm diameter
  • 3mm long 2mm diameter
  • Chamber which has a cross section area of (5.56mmx1.34mm) (7,45mm squared), 7.5 mm long
  • 3mm long 2 mm diameter
  • 9mm long 1mm diameter

Note that between each section is a 90 deg angle.

In ZP Flow cells for the connection of microbore tubing we tend to have a 1/4 - 28 thread for the microfluidic fittings. These are those fairly standard across the microfluidics users.
