Colour coding cables

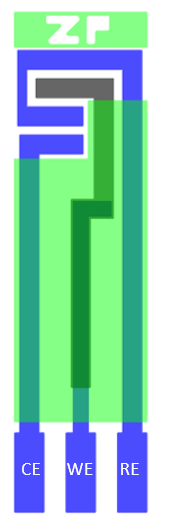

If you receive a cable from ZP and you are a little uncertain as to which connector goes to which electrode the rule is:

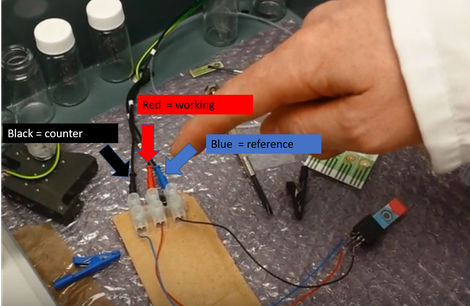

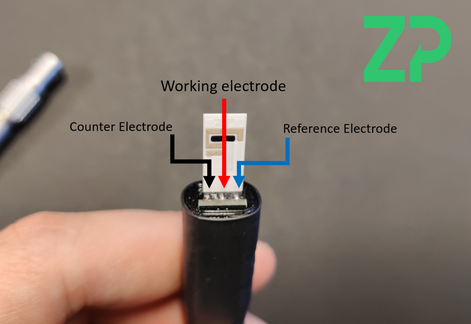

1) Red is connected to the working electrode



2) Blue is connected to the reference electrode



3) Black is connected to the counter electrode

If you woudl like some guidance please contact us.
