3D Printed Biosensor
On this page Zimmer and Peacock have pooled resources related to 3D printed sensors and biosensors, please click the contact us button below if you have questions or require Zimmer and Peacock sensors.
3D Printing Service
A 3D printing service from ZP
50,00 €
Final price excl. shipping costs
- Available
- Generally ships within 3-4 weeks
CAPABILITY
FDM - Fused Deposition Modelling - with built plate area of 25*21*21 cm with FDM we are able to print with PLA, PETG, ASA, ABS, PC (Polycarbonate), CPE, PVA/BVOH, PVB, HIPS, PP (Polypropylene), Flex, nGen, Nylon, Carbon filled, Woodfill materials.
Layer Height can be varied between - 0.05 to 0.35mm
Max detailed Resolution - 0.05mm
Tolerance : +/- 0.1mm on Z-axis and +/-0.15mm on X and Y axis
SLA - Stereolithography 19.2*12*24.5cm Build volume
Max detailed Resolution - XY axis - 0.050mm and Z axis - 0.01mm
Supports all 405nm UV resin
Tolerance : +/- 0.051mm

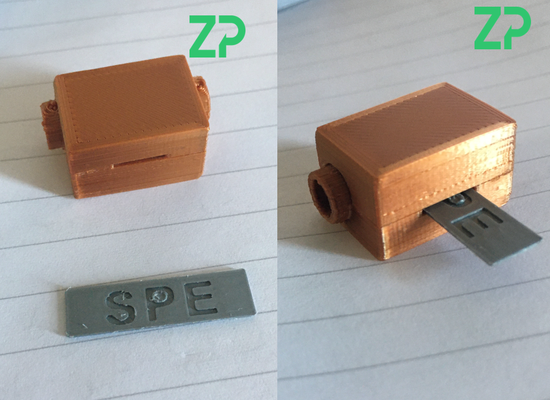

This is a further example of a Zimmer and Peacock sensor encased in a 3D printed microfluidic channe
In the video we show an example of a 3D printed flow cell for a Zimmer and Peacock sensor.
In the video we show the assembly and testing of a biosensor made using a 3D printed part. In the downloadable PDF you can see an example applied to cancer cell detection.
